The exceptional width of the LS7535 aluminum channel from klusdesignled can accommodate various combinations of LED strips for architectural lighting. Suspend or surface mount the silver anodized extrusion and use an optional frosted lens to create a diffused line of light for cove, soffit, and valance lighting. Available in lengths of 3.3 ft (1m) and 6.6 ft (2m).

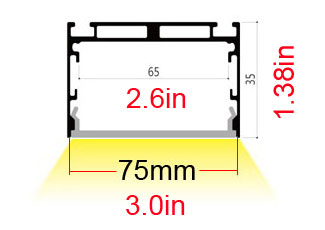

TECHNICAL DRAWING

APPLICATION
- main and decorative lighting

MOUNTING
- to the surface or suspended, using dedicated accessories
- can be easily connected into runs and systems

ADDITIONAL INFORMATION
- both LED strips and LED current modules can be used
- safety due to high vibration resistance
- standard lengths of klusdesignled profiles and covers: 1000 mm (tolerance ± 1.5 mm) and 2005 mm / 3010 mm (tolerance + 5 mm); for selected covers: 6050 mm, 10050 mm (tolerance + 5 mm)
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at klusdesignled

TECHNICAL SPECIFICATION
Material： aluminum
Possible fixture IP：  20
Accessories:    2pcs End Caps+2pcs Clips,2Sets Of Rope
Installation:    Surface-mounted/ Suspended
Standards And Certifications:    RoHS Compliant
Strip Width:    65mm
Lens:    Frosted
Finish:    Silver
Possible fixture shapes： linear, polygonal
Profile cross-section：rectangular
The cover is cut to the length of the profile：Yes
Can be easily connected into runs：Yes
Wire out back of extrusion：Yes
Possibility of obtaining a line of light：Yes
Building type：Commercial, Retail, Entertainment/ Arts, Hotel / Restaurant
Facility zone：office, communication routes and corridors, conference room, lobby / foyer
