LEDs

Vollong 5 Watt High Power White LEDs. LED package mounted on 20mm diameter Star PCB heat sinks. Up to 350 lumen with wide 125 degree viewing angle. Price for each. Specifications Continuous Forward Current: 800mA Forward Voltage: 7.0V LED Package: 14.5 mm x 7.5 mm Maximum Forward Voltage: 7.5V Maximum LED Junction Temperature: 120 Operating Temperature: -35~+50 °C (-31~+122 °F) Peak Forward Current: 2000mA Power Dissipation: 5W Reverse Current: 30 Reverse Voltage: 10V Storage...

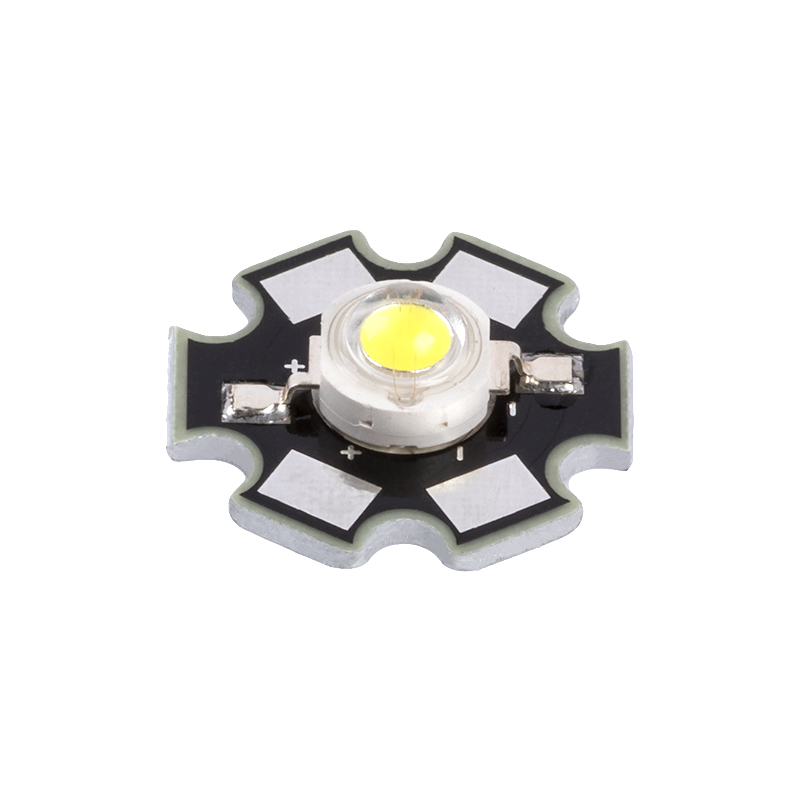

Vollong 3 Watt High Power White LEDs. LED package mounted on 20mm diameter Star PCB heatsinks. Up to 200 lumen with wide 120 degree viewing angle. Specifications Continuous Forward Current: 750 mA Forward Voltage: 3.6V LED Package: 14.5 mm x 7.5 mm Maximum Forward Voltage: 4V Maximum LED Junction Temperature: 120 Operating Temperature: -35~+50 °C (-31~+122 °F) Peak Forward Current: 1000mA Power Dissipation: 3W Reverse Current: 10µA Reverse Voltage: 5V Storage Temperature:...

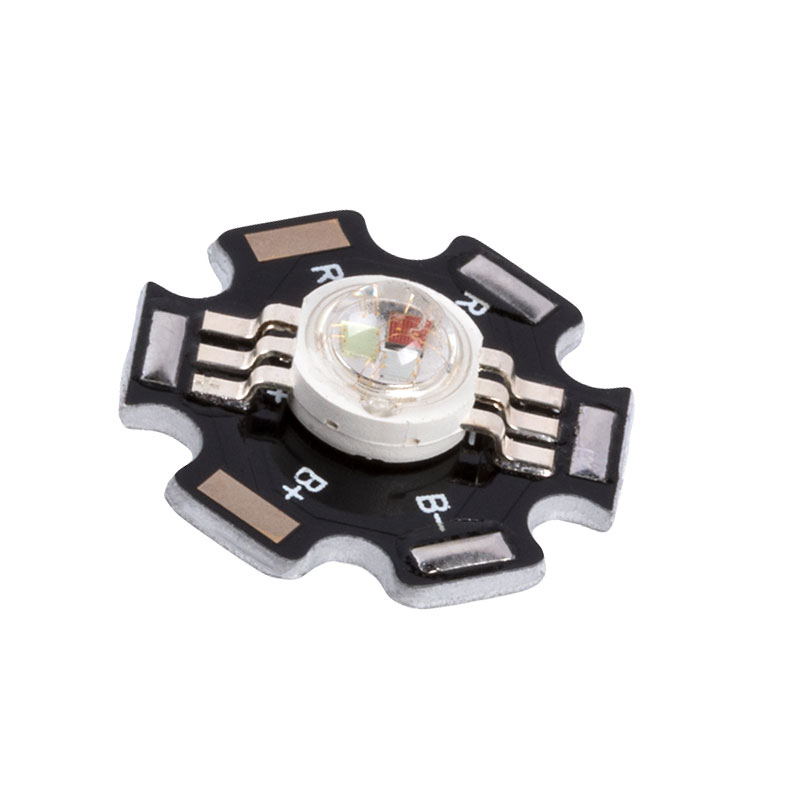

Vollong 3 Watt high power RGB LED. 465nm/525nm/625nm wavelength, 43,000mcd. with 120 degree viewing angle. See spectral graph for actual wavelength measurement. Specifications Continuous Forward Current: 350 mA, 400 mA Forward Voltage: 2.5V, 3.4V LED Color: RGB LED Package: 14.5 mm x 7.5 mm Lumen: 20 Lumen, 55 Lumen, 60 Lumen Maximum Forward Voltage: 2.8V, 3.8V Maximum LED Junction Temperature: 120 Millicandela: 43000mcd Operating Temperature: -35~+50 °C (-31~+122 °F) Peak Forward...

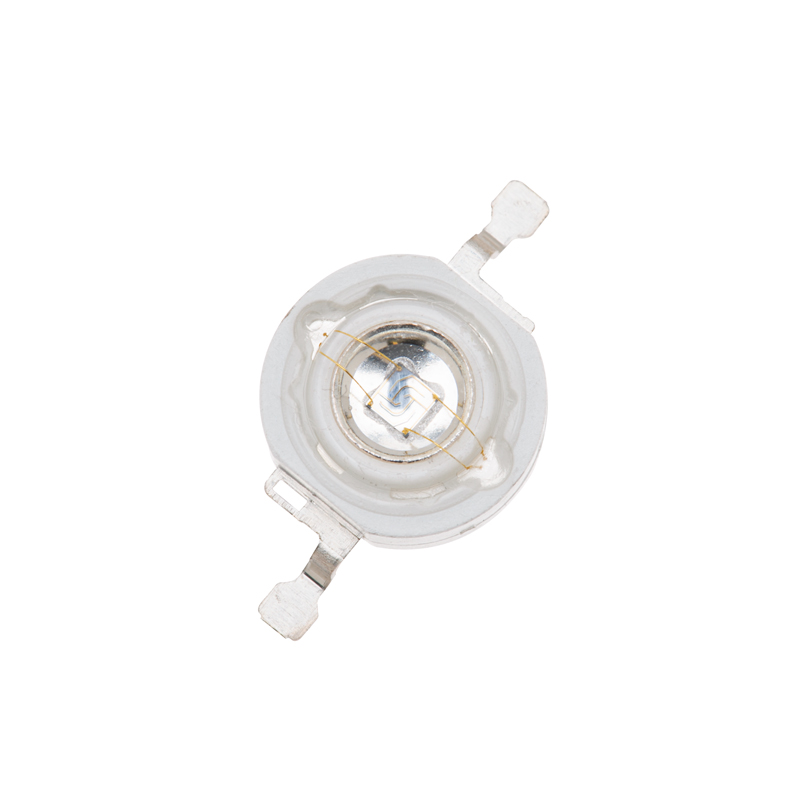

This 1 Watt Surface Mount LED features 130mW radiant power, 394nm wavelength, and a wide 130 degree viewing angle. Specifications Continuous Forward Current (IF): 350 mA Current Draw: 0.35A (350mA) Forward Voltage: 3.4V LED Color: UV (Blacklight) LED Package: 14.5 mm x 7.5 mm Millicandela:  N/A Operating Temperature: -30~+100 °C (-22~+212 °F) Peak Forward Current (IFM):  500mA Radiant Power: 130mW Storage Temperature (Tstg): -40~+100 °C Total Power Consumption: 4.2 Watts...

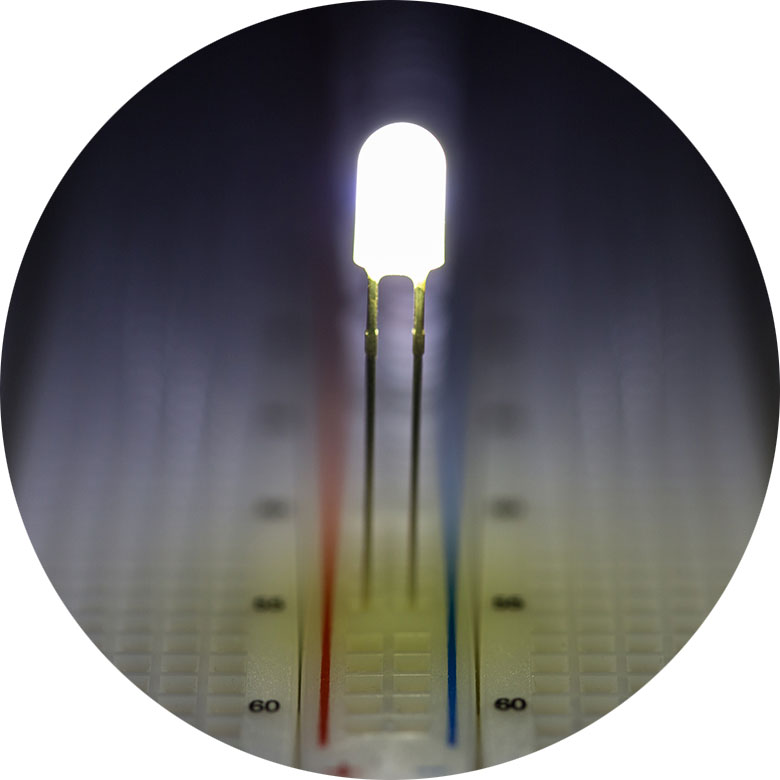

Cool white 5mm through hole LED. Features 7350K color temperature, 400mcd, and a 360 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Specifications Color Temperature: 7350 K Continuous Forward Current: 20 mA Forward Voltage: 3.2V LED Color: Cool 7350K LED Package: 5 mm (T-1 3/4) Lens: Diffused...

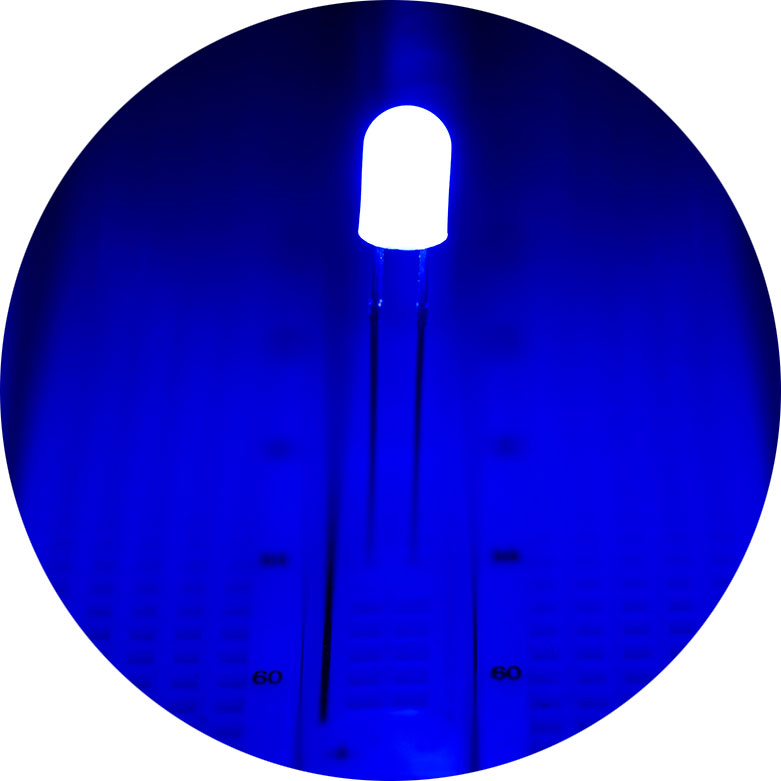

Blue through hole 5mm LED. Features 800 millilumens and 462nm wavelength. This unique LED has a diffuser coating which emits blue light in all directions, 360 degrees around, from end and bottom, just like a filament bulb. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Specifications Continuous Forward Current: 20 mA...

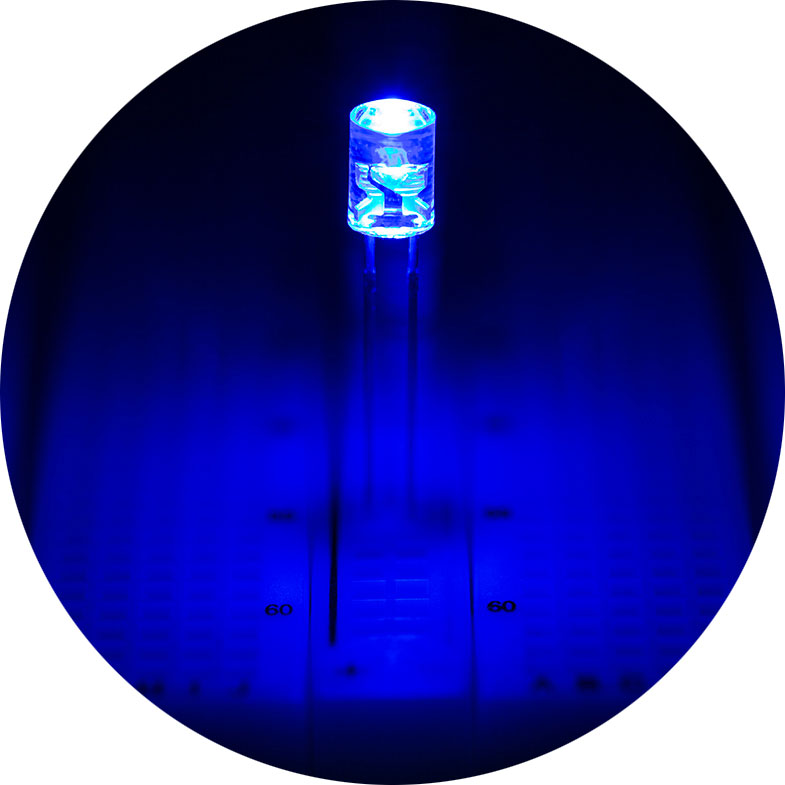

Super Bright 5mm Blue LED with through hole. Features a 470nm wavelength Blue LED, 1,200 millicandela with 120 degree viewing angle with flat tip. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Specifications Continuous Forward Current: 30 mA Forward Voltage: 3.3V LED Color: Blue LED Package: 5 mm (T-1 3/4) Lens: Clear...

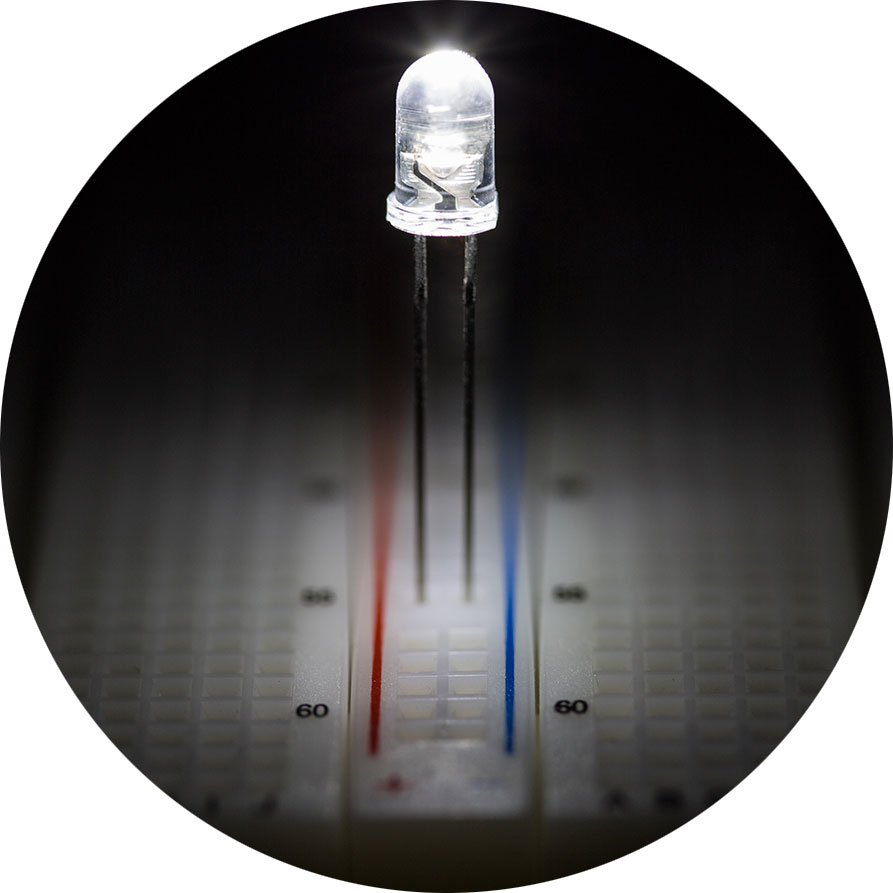

5mm through hole component LED in cool white. Features 10,000 millicandela, 7300K color temperature, and a 15 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Specifications Color Temperature: 7300 K Continuous Forward Current: 30 mA Forward...

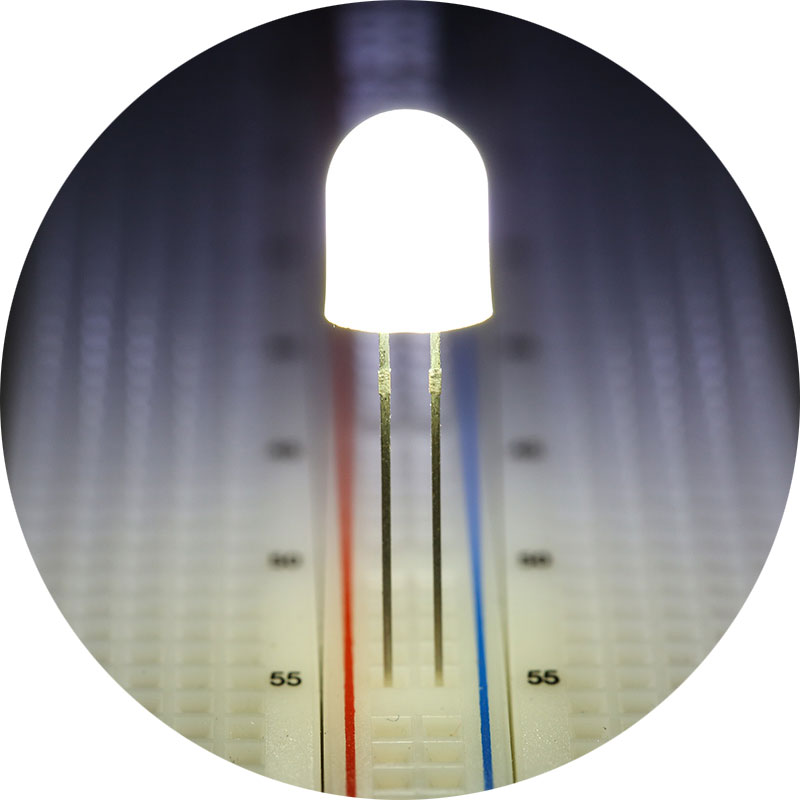

Cool White 8mm through hole LED. Features 11,000 millilumens and a cool white color temperature of 5250K. This unique LED has a diffuser coating which emits Red light in all directions, 360 degrees around, from end and bottom, just like a filament bulb. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Specifications Color...

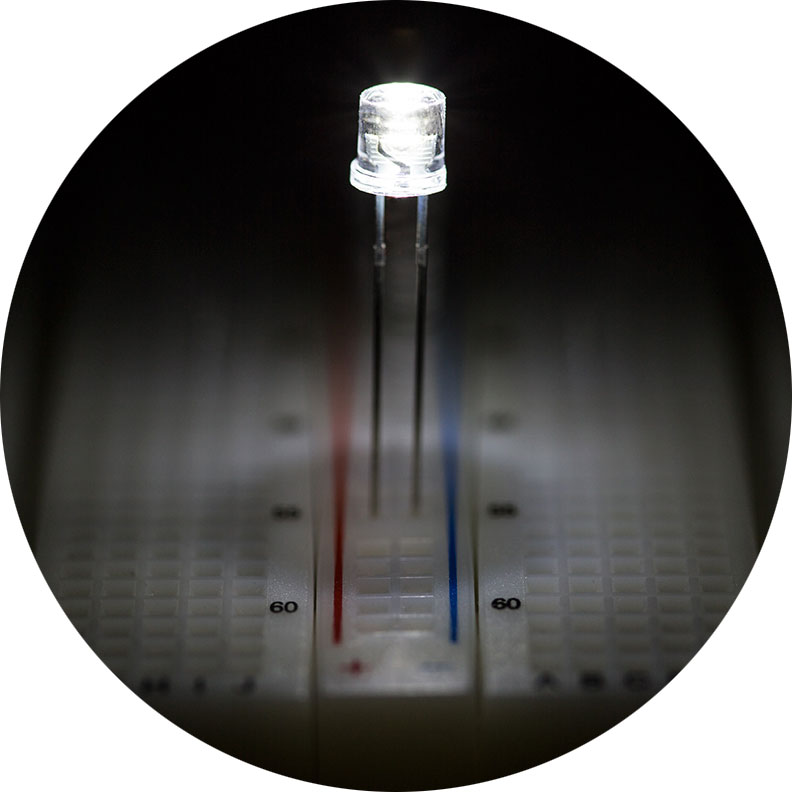

5mm through hole Cool White LED. Features 7650K color temperature and 1,500mcd. It has a 120 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Specifications Color Temperature: 7650 K Continuous Forward Current: 30 mA Forward Voltage: 3.3V LED Color: Cool 7650K LED Package: 5 mm (T-1 3/4) Lens: Clear...

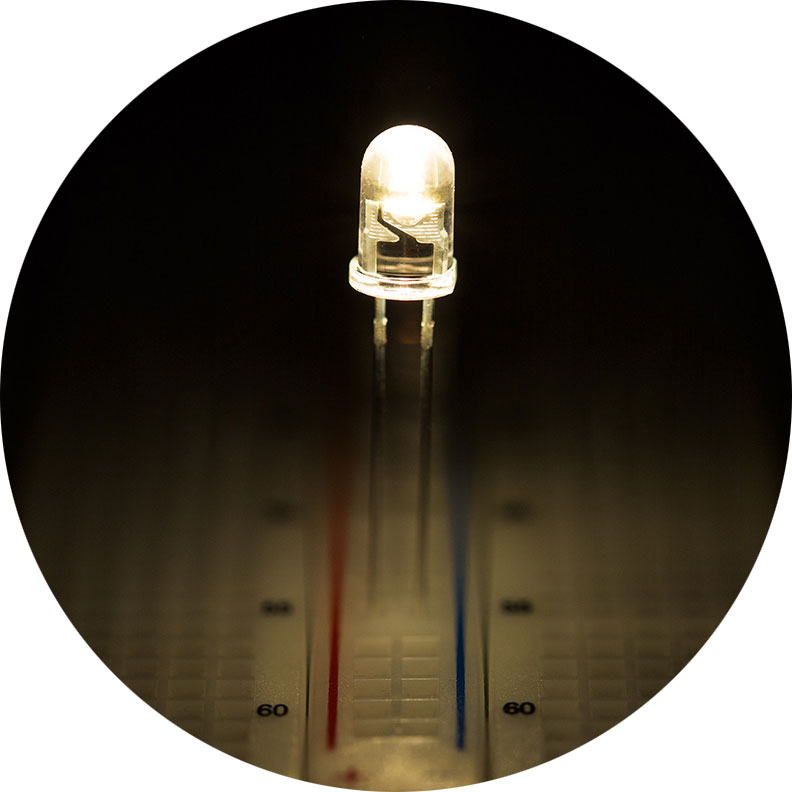

5mm through hole component LED in warm white. Features 7,000 millicandela, 3100K color temperature, and a 35 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Specifications Color Temperature: 3100 K Continuous Forward Current: 30 mA Forward...

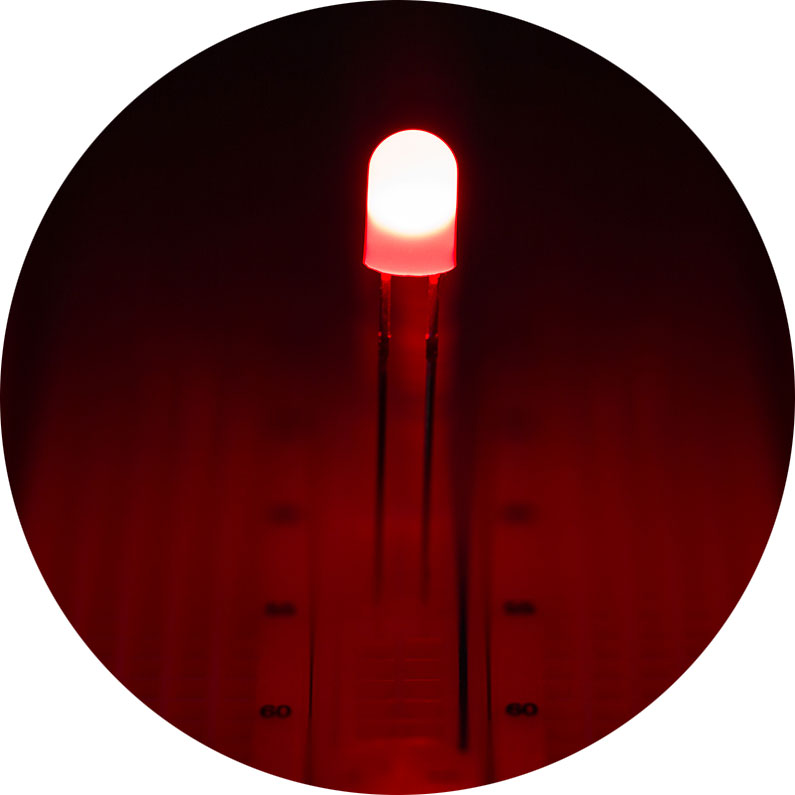

5mm Red through hole LED. Features 625nm wavelength, 100mcd, and 360 degree viewing angle. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Specifications Continuous Forward Current: 20 mA Forward Voltage: 1.9V LED Color: Red LED Package: 5 mm (T-1 3/4) Lens: Diffused Lumen: 1 Lumen Maximum Forward Voltage: 2.1V...
